FNCP 58E Series Programmable Encoder

Features

  • Industry 58mm standard size
  • End hollow shaft flange
  • Robust mechanical and electrical construction
  • Protection to IP67
  • Up to 100.000 PPR max
  • <2 kHz frequency

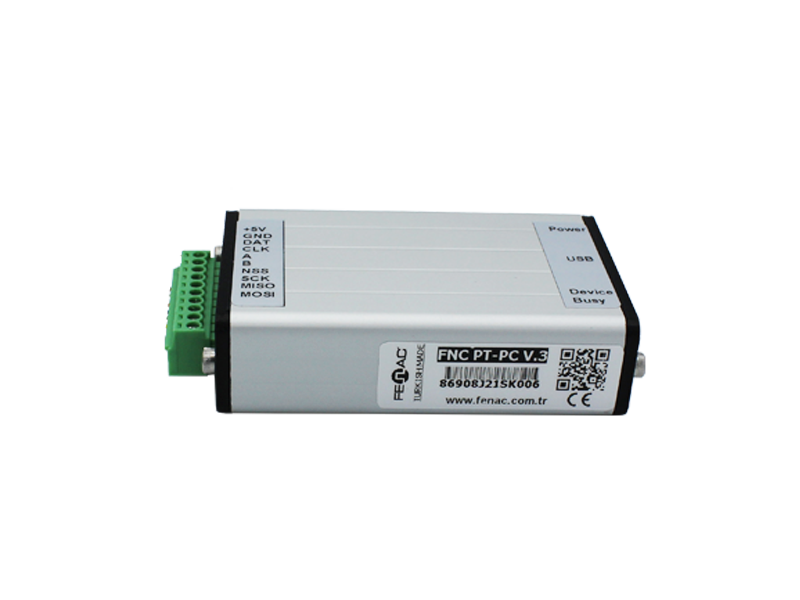

  • Programming via FNC PT-PC Programming tool
  • FNC PT-PS easy programming software



Download Programming Software

ISBN : FNCP 58EO 10630VX - R2


Flange Diameter 58 mm,
Supply Voltage 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30Vdc,
Connection Type 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable,
Shaft Diameter 4 mm, 6 mm, 8 mm, 10 mm, 12 mm,
Resolution / Pulse 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000, 65536,
Output Circuit / Push-Pull ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
