FNC ASM80H Series Absolute SSI Encoder
Review the specifications and find a solution for your application.
Stock code: FNC ASM 80H 10S12M1230VB - R4

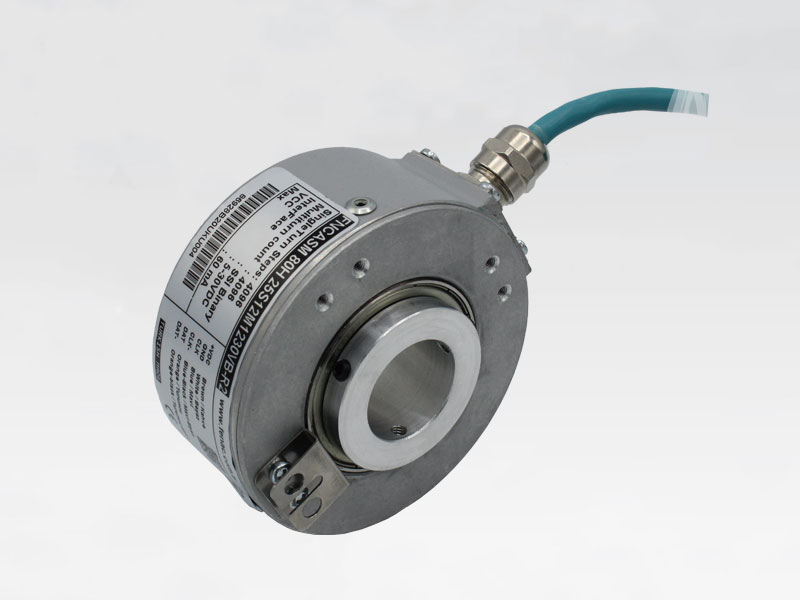

FNC ASM80H Series Absolute SSI Encoder
- Encoder single - or multiturn / SSI - BISS
- Magnetic Sensing
- Magnetic single turn resolution: 18 bit
- Multi-turn 0...24 bit
- Through Hollow Shaft
- Permanent check of code continuity
- Extreme resistance to shock and vibration
- Encoder with electronic reset
General Features
- Encoder single - or multiturn / SSI - BISS
- Magnetic Sensing
- Magnetic single turn resolution: 18 bit
- Multi-turn 0...24 bit
- Through Hollow Shaft
- Permanent check of code continuity
- Extreme resistance to shock and vibration
- Encoder with electronic reset
| Product Group | Absolute Standard Rotary Encoders |
|---|---|
| Flange Diameter | 80 mm |
| Shaft Diameter | 25 mm |
| Singleturn Resolution | 1 bit, 2 bit, 3 bit, 4 bit, 5 bit, 6 bit, 7 bit, 8 bit, 9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit |
| Multi-turn Resolution | 1 bit, 2 bit, 3 bit, 4 bit, 5 bit, 6 bit, 7 bit, 8 bit, 9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit, 19 bit, 20 bit, 21 bit, 22 bit, 23 bit, 24 bit |
| Connection Type | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M23/12pin |
| Supply Voltage | 30V : 5-30V in/out |
| Interface | SSI, BISS |
