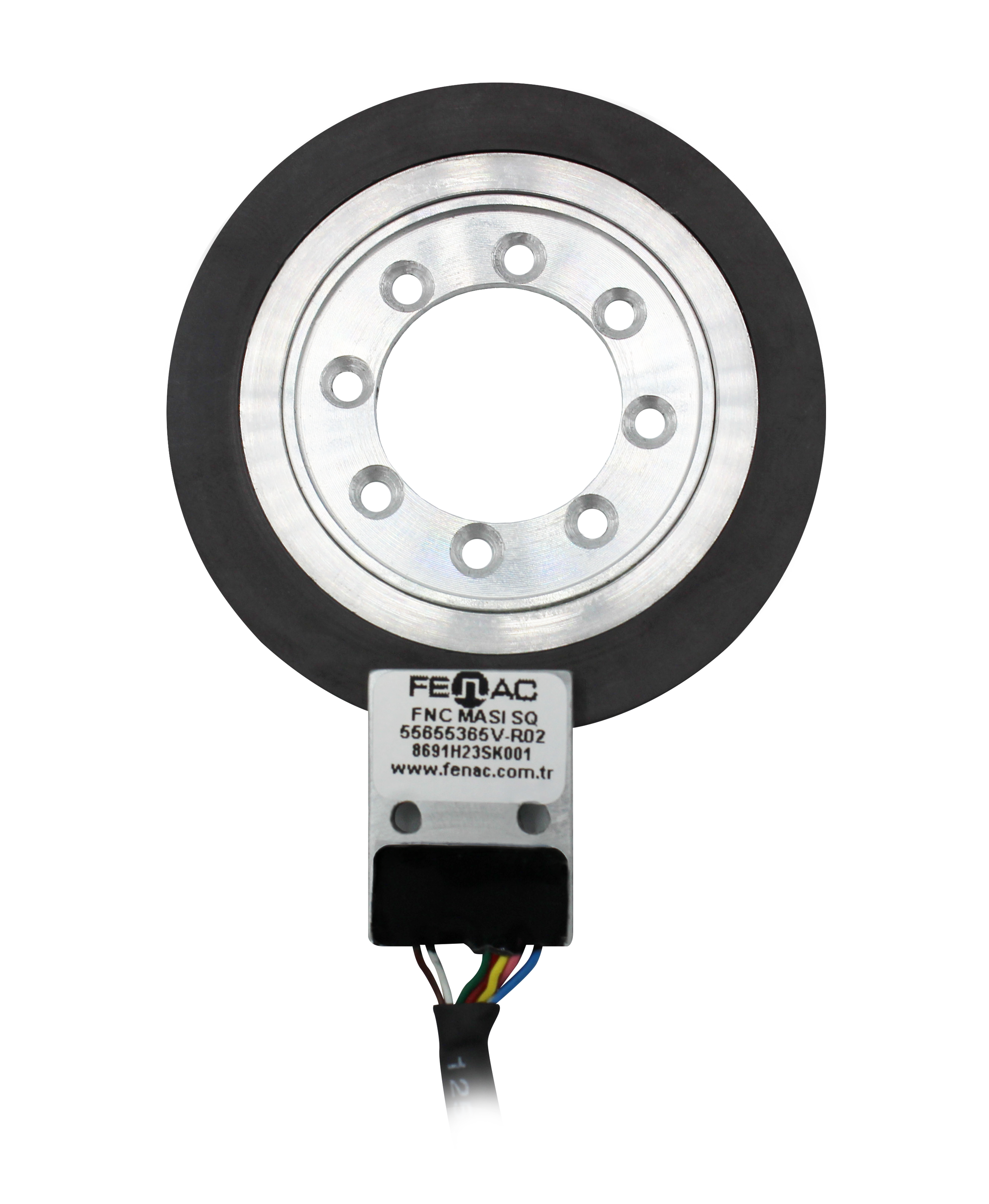

FNC MAS45系列编码器
一般特征
- Off-Axis Incremental & Commutation rotary encoder
- Robust mechanical and electrical construction
- Corrosion-resistant magnetic ring
- Outer diameter 45 mm
- Inner diameter 25 mm
- Up to 65.536 PPR max. incremental rotary encoder
- Up to 18 bit for absolute rotary encoder
- Up to 16 pole pairs
- <300 kHz
- Magnetic system
ISBN : FNC MASX P455V-R02
| 电源电压 | 5V : 5V in/out, |
| 连接类型 | 20 cm Cable, 1 mt Cable, |
| 轴直径 | 25 mm, |
| 脉冲 | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000, 65536, |
| 输出电路 / 推拉 | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |
| 产品组 | 无轴承编码器, |
| 界面 | SSI, BISS, |
| 单圈分辨率 | 1 bit, 2 bit, 3 bit, 4 bit, 5 bit, 6 bit, 7 bit, 8 bit, 9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit, 19 bit, |
