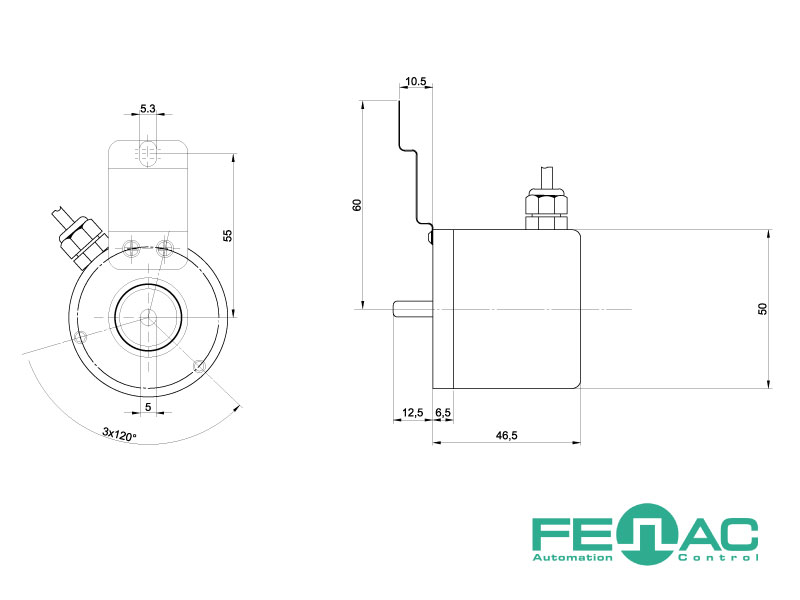

FNC 50S Series Incremental Encoder
Features
- Industry 50 mm Stand Size, Clamping Flange, incremental encoder
- Robust Mechanical and Electrical Construction
- Protection up to IP67
- Up to 5000 PPR max.
- <300 kHz Frequency
ISBN : FNC 50S 10630V1024 - R2
| Flange Diameter | 50 mm, |
| Supply Voltage | 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30Vdc, |
| Connection Type | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin, |
| Shaft Diameter | 6 mm, 8 mm, 10 mm, |
| Resolution / Pulse | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 2000, 2048, 2500, 3000, 3600, 4000, 5000, |

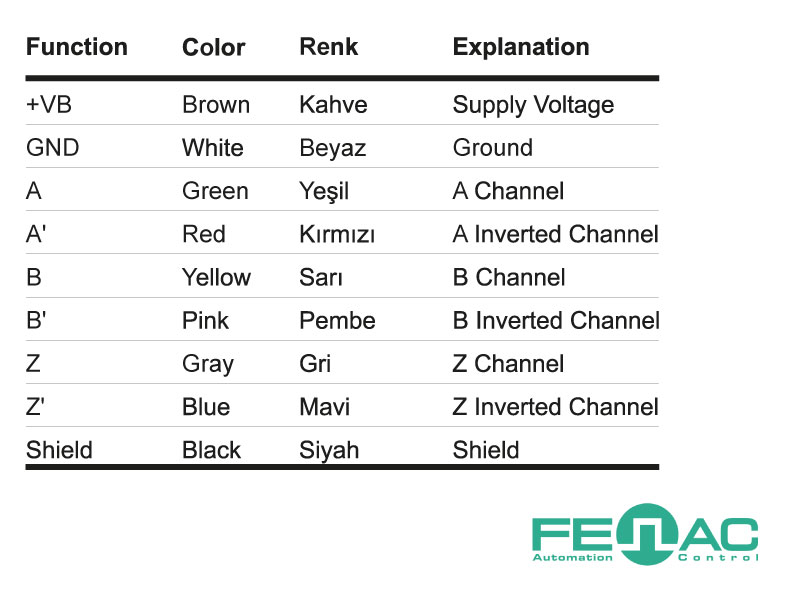

| Output Circuit / Push-Pull | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |
| Product Group | Incremental Rotary Encoders, |
- FNC 50S Series Incremental Encoder
-
