FNC 50H Series Incremental Encoder

FNC 50H Series Incremental Encoder
  • FNC 50H Series Incremental Encoder
  • FNC 50H Series Incremental Encoder
  • FNC 50H Series Incremental Encoder
  • FNC 50H Series Incremental Encoder

Features

  • Industry 50 mm Standart Size, Clamping Flange, incremental encoder
  • Robuts Mechanical and Electrical Construction
  • Protection up to IP67
  • Up to 5000 PPR max.
  • <300 kHz frequency

ISBN : FNC 50H 10630V1024 - R2

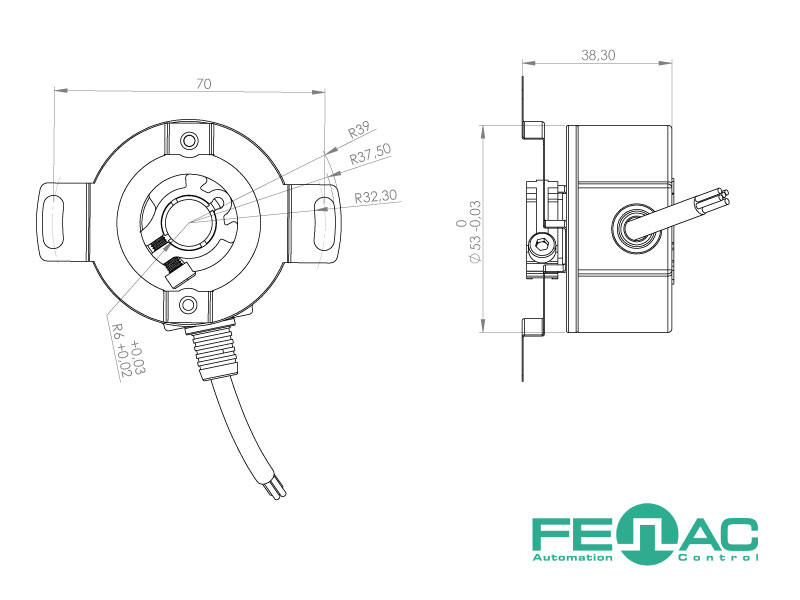

Flange Diameter 50 mm,
Supply Voltage 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30Vdc,
Connection Type 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin,
Shaft Diameter 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 15 mm,
Resolution / Pulse 900, 1000, 1024, 1250, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000,

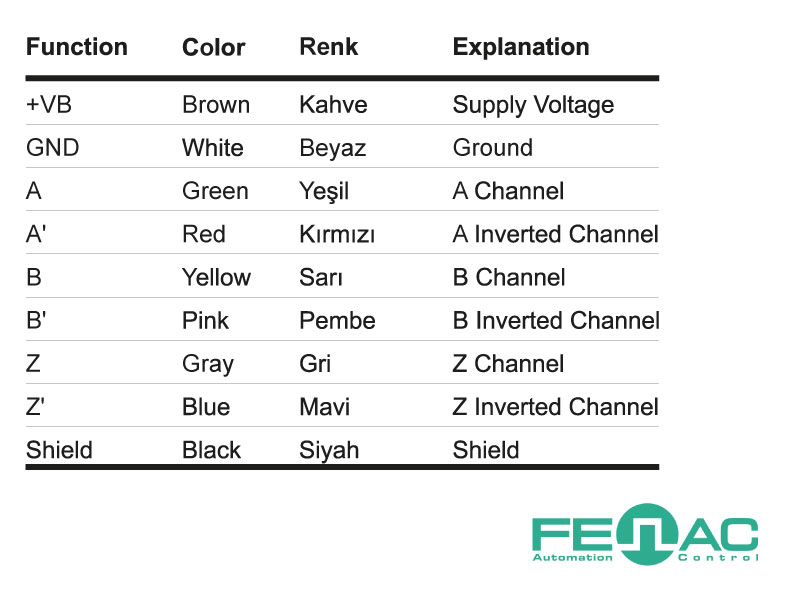

Output Circuit / Push-Pull A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
Product Group Incremental Rotary Encoders,

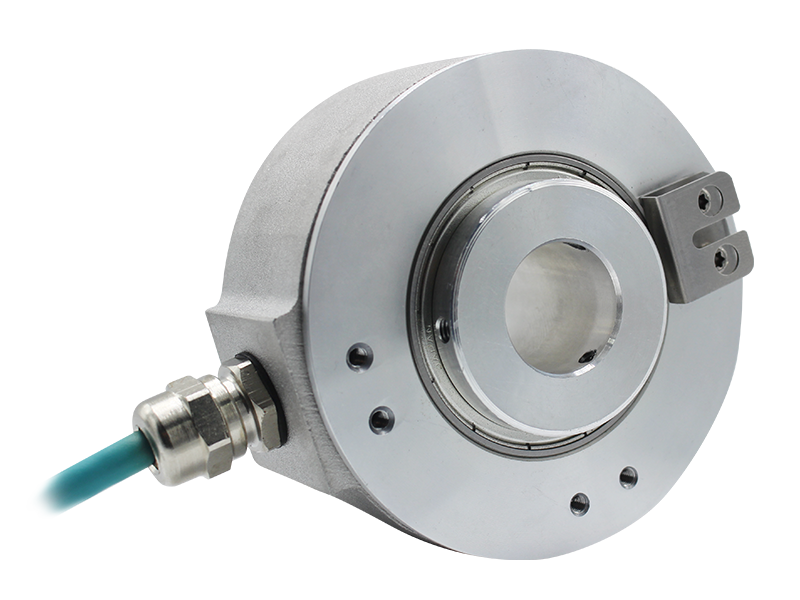

Similar Products
