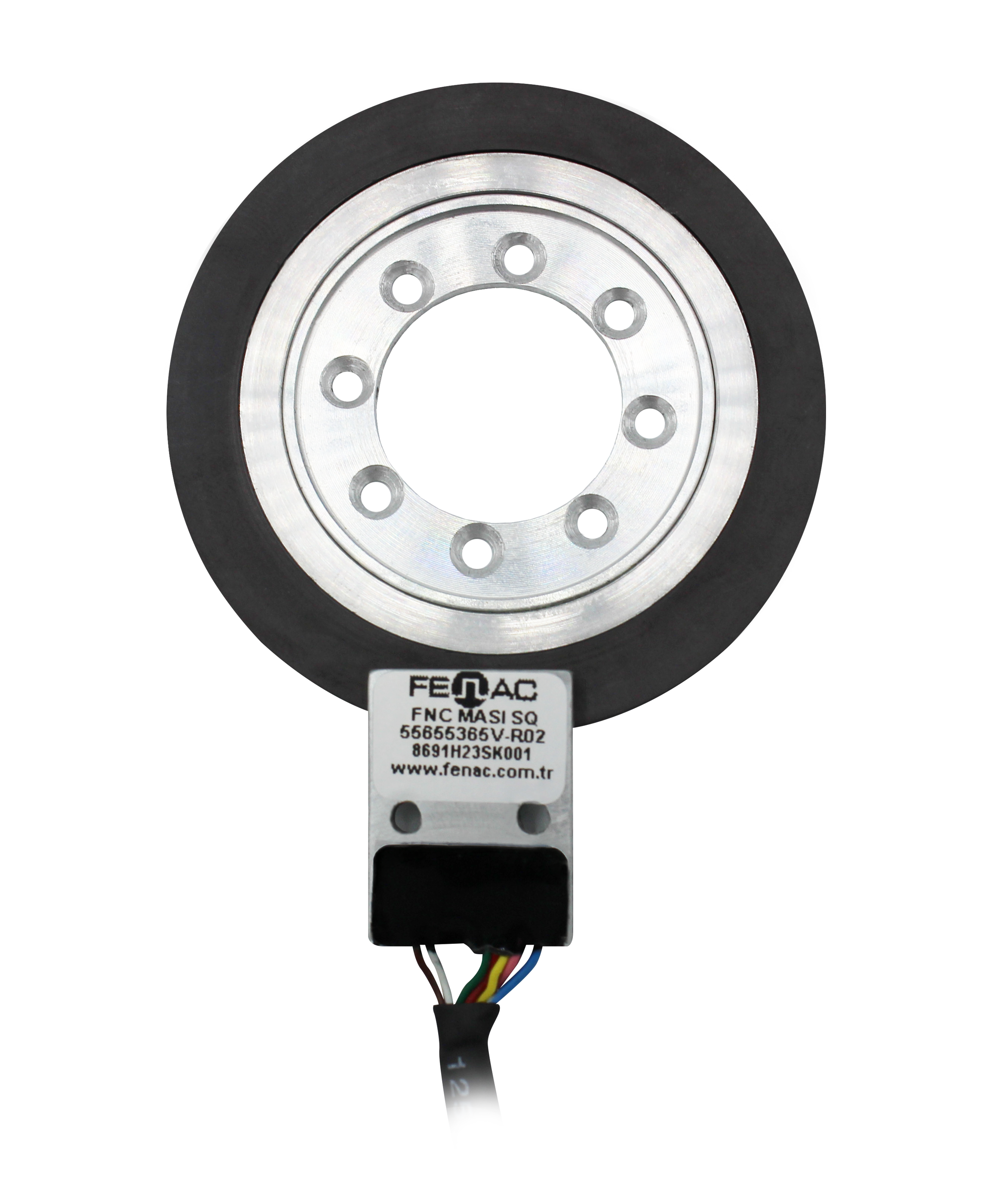

FNC MAS55系列编码器

Yeni
  • FNC MAS55系列编码器
  • FNC MAS55系列编码器

一般特征

  • Off-Axis Incremental & Commutation rotary encoder
  • Robust mechanical and electrical construction
  • Corrosion-resistant magnetic ring
  • Outer diameter 30 mm
  • Inner diameter 15 mm
  • Up to 65.536 PPR max. incremental rotary encoder
  • Up to 18 bit for absolute rotary encoder
  • Up to 16 pole pairs
  • <300 kHz
  • Magnetic system

ISBN : FNC MASX P555V-R02


法兰直径 55 mm,
电源电压 5V : 5V in/out, 30V : 5-30V in/out,
连接类型 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable,
轴直径 35 mm,
脉冲 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000, 65536,
输出电路 / 推拉 A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
产品组 无轴承编码器,
